Asphalt Plant Equipment For Sale - New & Used Asphalt, Concrete & Crushing Plants

**Brand:** Simplicity **Output:** 6,000-7,000lbs **Stationary** **Dryer:** * Approx: 8' x 32' * Cradle chain driven * 150hp motor w/gearbox * Reject chute * Some patching done * Dryer thickness- burner end, .42/.41/.35 * Gencor Burner, 39,000cfm * Ran on oil 60hp blower **4 Bin Cold Feed Bins:** * 30" 7.5hp gathering * 30" 3hp feeders * Bin dividers * Mesh liners * Bin 1 has some minor holes * Incline conveyor 7.5hp * 28" belting **Baghouse:** * Herman Grant 3 section * Approx. 39,000CFM * Airpulse 42 pulsars * Twin 125hp fan. * (1 motor missing) * 7.5hp auger * 8.Rotary valve * 9.12" auger feeds bucket elevator * 10.LEROI compressor **A.C. System:** * 1 -1971 Chattanooga tank * s/n 17870-02-1 * Model 120-as * Approx. 3 feet of ac in tank * Heater w/ power flame burner * Honeywell control * 2-8000-gallon fuel tanks * 1-10,000-gallon fuel tank * small tack tank **Controls:** * NO CONTROL HOUSE * Computer controls in block building w/ mcc center * All wire above ground ## PLANT STILL STANDING Zip Code in location is for state capital, please contact ASI directly for more specific location.

MAKE REASONABLE OFFER, MUST BE OFF SITE ASAP ## Batch Tower **Make**: Barber Greene **Model:** BE65 x291 BE BatchPac Plant **Capacity (Lb)**: 6,000lb **Portability**: Stationary **Number of Hot Bins:** 4 **Hot Bin Size**: 45 Ton **Hot Bin Serial Number**: A2-898-555B **Bucket Elevator**: Hot Elevator **Vertical or Incline:** Vertical Elevator **Screen Serial Number**: 860X765 **Screen Size**: 3 ½' **Pugmill Make**: Barber Greene **Pugmill Model**: BE65 x291 **Pugmill Serial Number:** 01-898-300B **Pugmill Capacity/Size**: 3 Ton **Pugmill Motor:** 125 HP **Other:** Arms, Tips, Paddles, and Liner Included. **Controls**: In Control House **Current Status**: Standing, Still Connected **Notes:** Paddles replaced in 2013. Hot oil jacketed. No bypass chute on screen. ## Baghouse **Make**: Barber Greene **Model**: BG CE 135x160 **Serial Number**: 170-113388 **Type**: Pulse Jet **Capacity (ACFM):** Approx. 43,000 **Portability**: Portable **Bag Size:** 6" x 8' **Dust Discharge System**: Double Auger **Ductwork:** Included **Controls**: In Control House **Cyclone:** Included **Cyclone Make:** Estees **Cyclone Year**: 1968 **Extra Components**: Extra bags included **Current Status**: Standing, Still Connected **Condition**: Ductwork has holes ## Dryer **Make:** Barber Greene **Model:** DA-70 **Year:** 1968 **Drum Size:** 108" (Outside Diameter at Exhaust) x 20' Length **Portability**: Stationary **Rap Collar**: Yes **Thickness**: .298 / .272 / .106 / .326 / .306 / .323 / .342 / .334 / .328 / .352 / .350 / .320 **Flights:** Decent (50/50) **Driving System**: Single Drive **Motor**: Approx 50 hp **Burner Make**: Hauck (older style) **Burner Model:** SJO360 **Burner Fuel Source:** Combo, Running on Gas (with gas train) **Condition Notes**: Inlet side needs relining; has silicone filler **Current Status**: Standing, StIll Connected ## AC Tanks (3) **Tank 1** **Type:** AC Tank **Capacity (Gallons)**: 20,000 **Portability**: Skid Mounted **Compartments**: Single **Heating Source**: Coiled **Insulated**: Yes **Condition**: Empty (Coked) **Current Status:** Still Connected **Tank 2** **Type:** AC Tank, Rail Road Cars **Serial Number**: 17630 **Capacity**: Approx 10,000 **Portability:** Skid Mounted **Compartments:** Single **Heating Source**: Coiled **Insulated:** Yes **Other Components:** Hot Oil Jacketed, Bypass Valce, Skinned, and Riveted. **Condition:** Empty, Poor Shape **Current Status**: Still Connected **Tank 3** **Type**: AC Tank, Rail Road Cars **Serial Number:** 66577 **Capacity**: Approx 10,000 **Portability:** Skid Mounted **Compartments:** Single **Heating Source**: Coiled **Insulated:** Yes **Other Components:** Hot Oil Jacketed, Bypass Valce, Skinned, and Riveted. **Condition:** Half Full, Poor Shape **Current Status:** Still Connected ## Heater **Make**: Heatec **Model:** HCS-230C **Serial Number**: 488-028 **Year**: 3-1988 **Burner Model:** JBO **Burner Fuel Source**: Combo, Running on Gas (with Eclypse Gas Train) **Other Components:** Has Fire Eye **Current Status**: Still Connected ## Cold Feed Bins **Number of Bins**: 4 **Bin Size:** 8' x 13', with 3' Bin Extenders **Bin Capactiy**: 30 Tons **Portability:** Stationary **Variable Speed Feeders:** (2) 18'' x 8' Graham Vari-Speed and (2) 18'' x 5' Graham Vari-Speed **Vibrators**: (2) Bins have Vibrators **Condition:** Empty **Current Status**: Standing, Still Connected ## Rap System **Number of Bins**: 1 **Bin Size**: 12' x 6' **Portability**: Stationary **Grizzlies:** Yes **Vibrator:** Yes **Belt Feeder Conveyor**: 32'' x 20' **Weigh Bridge Conveyor**: 24'' x 40' **Weigh Bridge Year**: 1969 **Weigh Bridge Type**: Incline **Current Status**: Standing, Still Connected ## Dust Silo **Type:** Dust **Capacity (bbl)**: 300 **Portability:** Stationary **Weigh Hopper:** Yes **Dust Blower:** Yes **Current Status**: Standing, Still Connected ## Control House **Control House is NOT Included** **Structure**: Block Building **Condition**: Control House NOT Included with Purchase. All control must be removed at time of purchase. **Controls:** Martin Computer Controls **MCC:** Included. Must be removed from bucket cabinet at time of purchase. **Other Info**: Wiring mostly above ground, but underground wire will need to be replaced. ## Other Components Has Portable Trailer Some Spare Parts Included All Above Wire Included ## Owner's Condition Notes All new controls, replaced 2 years ago. New cold feed bins, replaced 2 years ago. New Bags in baghouse. All new flights in drum, replaced 2 years ago. Screen deck removed and completely rebuilt, 2 years ago along with all new screens.

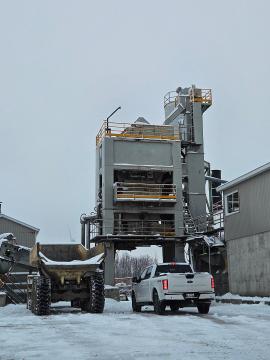

## Batch Tower **Make**: Barber Greene **Capacity (Lb)**: 5,000lb **Portability**: Stationary **Number of Hot Bins**: 4 **Size of Hot Bins:** 50 Tons **Screen Size:** 3' x 8' Scalping Screen (Located Over the Slinger Belt on the Dryer) **Number of Decks**: Single **Condition Notes**: No screen on top of the tower **Other Notes**: Duct from the Baghouse Pulls Dust **Current Status:** Standing, Still Connected ## Dryer **Make**: Barber Greene **Model:** DC 60x157 **Portability**: Stationary **Drum Size**: 6' x 32' **Counterflow or Parallel Flow:** Counterflow **Driving System:** Cradle Chain Drive **Motor:** Single Motor **Burner Make:** Hauck **Burner Model:** SJO G 4520E **Burner Fuel Source**: Oil/Gas, Running on Diesel **Combustion Chamber**: Yes **Condition Notes**: Dryer and Burner are in Excellent Condition. Drive Chain, Sprocket, and Flights are in Good Condition. **Other Notes**: Materials are Fed into the Dryer via Motorized Slinger Belt. **Current Status:** Standing, Still Connected ## Baghouse: **Portability:** Stationary **Access**: Top Load Bags and Cages **Fan Make**: New York **Fan Model**: Size 52 **Fan HP:** 125 HP **Damper**: Yes **Ductwork:** Ductwork from the Dryer to the Baghouse Included **Cyclone:** Cyclone Pre-Cleaner Included **Stack**: Yes **Compressor**: Rotary Screw Air Compressor Included. **Extra Components**: Work Platform Inclduded for Fan. Ladder with an OSHA Approved Cage, Handrails, and Top Kick Plates are Included. **Condition Notes:** Clean air area is extremely clean. Baghouse in excellent condition. **Other Notes**: The top of the baghouse is sloped to promote water drainage. Material drops out of the baghouse into another auger system that carries the dust to the hot elevator. **Current Status:** Standing, Still Connected ## Cold Feed: **Make**: Cedarapids **Serial Number**: 25897. **Number of Bins**: 4 bin **Bin Size**: 8’ x 12’ **Current Status**: Standing, Still Connected ## AC Tanks: **Number of Tanks**: 2 **Portability**: Stationary, Skidded **Plumbing**: Some Included **Pump:** AC Delivery Pump Included **Heater Make**: Heatec **Heater Fuel Source**: Oil/Gas, Currently Running on Diesel **Current Status**: Standing, Still Connected ## Controls: Unknown

## Dryer: **Make**: Cedarapids **Drum Size:** 8’ diameter x 34’ long **Portability**: Stationary **Rap Collar**: Yes **Vibrators**: Air vibrator on breaching **Gravity Chute**: Yes, incline conveyor delivers materials to gravity chute **Breaching:** Yes, Air vibrator on breaching **Flights:** Fair condition **Driving System:** Chain drive system **Motor**: 75 hp **Gearbox**: Foot Jones **Burner Make**: Gencor **Burner Model:** AF-60 **Burner Fuel Source**: Tri-fuel **Blower HP**: 60 hp **Noise Reduction Chamber:** Yes **Condition Notes**: Poor condition with visible hole and previous lining work **Standing/On Ground:** Standing * If purchased separately $23,400.00 ## Hot Elevator and Batch Tower: **Make:** Cedarapids **Size (Lb)**: 8,000 lb **Number of Hot Bins:** 4 **Kettle Included**: [Yes/No] **Bucket Elevator:** Incline **Vertical or Incline**: Incline **Chain**: Double-strand 6” pitch roller chain **Bucket Sizes:** 10” x 18” **Elevator Motor** HP: 25 hp **Screen Make**: Deister **Horizontal or Incline**: Horizontal **Number of Decks**: 4-1/3 **Motor HP**: 30 hp **Pugmill Capacity/Size**: 8,000 lb **Pugmill Motor**: 125 hp **Arms, Tips, Paddles, and Liner**: Fair condition **Condition Notes**: Arms, tips, paddles, and liners in fair condition **Standing/On Ground:** Standing * If purchased separately $15,600.00 ## Cold Feeds: **Number of Bins:** Five (5) **Bin Size**: 10' x 14' top openings **Portability**: Stationary **Variable Speed Feeders**: Yes **Grizzlies**: No **Motors**: 3 HP D.C. motors on bin feeders **Drives**: Yes **Reducers**: Yes **Belt Feeder Conveyor:** 24" x 45' conveyor **Belt Feeder Conveyor Motor:** 3 HP **Collecting Conveyor**: 30" x 60' collecting conveyor **Collecting Conveyor Motor(s)**: 10 HP **Extenders:** Bin extensions and dividers for added capacity **Walkway:** Side walkway included **Standing/On Ground:** On ground, disassembled * If purchased separately $23,400.00 ## RAP System: **Number of Bins**: 1 **Bin Size:** 13’ x 19’ top opening **Portability**: Stationary **Grizzlies**: Yes **Variable Speed Feeders**: Yes **Belt Feeder Conveyor:** 30” wide x 15’ long **Belt Feeder Conveyor Motor**: 5 hp D.C. motor **Intermediate Feeder Conveyor**: 30” x 30’ **Screen Size**: 4' x 10' double-deck (bottom deck removed) **Screen Decks**: Double **Weigh Bridge Conveyor**: 30” x 65’ **Weigh Bridge Conveyor Motor:** 7.5 hp motor **Standing/On Ground**: Standing * If purchased separately $11,700.00 ## Dust Control: **Make:** Standard Havens **Type**: Pulse Jet Baghouse **Model:** Size 28 **Serial Number**: N/A **ACFM:** 63,000 **Cloth Area:** ~12,096 sq. ft. **Bag Count**: N/A **Bag Size:** 6" x 16' **Dust Discharge System**: Fines returned to hot elevator via two augers **Fan**: Exhaust Fan Powered by Twin 125 HP Motors **Portability**: Stationary **Damper:** Automatic Outlet Damper **Ductwork**: Complete with All Ductwork and Stack **Standing/On Ground**: Standing * If purchased separately $31,200.00 ## Liquid AC System: **Capacity**: 20,000 Gallons **Number of Tanks:** 2 **Portability**: Stationary, Skid Mounted **Compartments**: Single **Heating Source**: Coiled (No Heater Included) **Agitation**: No **Orientation:** Horizontal **Plumbing**: Included **Pump Included**: Yes **Pump Type:** Plant Pump and Unloading Pump **Pump HP**: 20 hp (each pump) **Standing/Connected/Disassembled**: Still Connected * If purchase separately $11,700.00 Each ## Fuel System: None included. ## Silo System: None included. ## Control House and Controls: **No Control House Included** **Batch Plant Controls**: Newer Astec batch plant blending controls **Burner Controls**: Astec BC 3300 burner controls **Motor Control Center:** NOT included * If purchased separately $7,800.00 (Controls Only) ## Dust Silo: **Capacity**: Approx 300BBL **Portability**: Stationary **Binvent**: No **Auger**: Yes * If purchase separately price TBD ## Miscellaneous: Equipment available after next job is completed. Original partial parts book for the plant included, along with books for the Astec controls.

## Batch Tower: **Make**: Barber Green **Model**: Batchpac, BE-67 **Capacity (Lb)**: 3.5 Ton, 300tph **Portability:** Stationary **Size of Hot Bins**: 50 Ton **Weigh Batcher**: Included **AC Weigh Bucket:** Included **Bucket Elevator**: Included, Additional Second Bucket Elevator to Feed Coater Also Included. **Vertical or Incline**: Vertical **Elevator Motor HP**: 25hp **Screen Size**: 5' x 14' **Number of Decks**: 3 1/2 **Pugmill Motor**: 125 HP **Other Incldued Items**: 300tph Coater (for Continuous Mixing RAP) **Current Status**: Disconnect, On Ground ## Dryer: **Drum Size**: 9' x 40' **Counterflow or Parallel Flow**: Counterflow **Breaching**: Included, with Ductwork from Dryer to Cyclone. **Driving System**: Gravity Feed, Saddle Chain Drive **Burner Make**: Genco **Burner Model**: Ultra 11-100 **Burner BTU:** 100mbtu **Burner Fuel Source**: Natural Gas **Cyclone:** Incldued, Stand as Well. **Condition Notes:** Dryer was replaced 5-6 years ago. **Current Status**: Disconnected, On Ground ## Scales: **Size**: 30'' x 70' Scale Conveyor (Feeds Dryer from Cold Feed Bins) ## Rap Bin: **Model**: Series III **Number of Bins:** 1 **Bin Size**: 8' x 14' **Scalping Screen:** NOT Included **RAP Scale Conveyor:** NOT included ## Additional Notes: Price does not include the baghouse, dust silo, cold feed bins, batching controls, wiring, AC tanks, heater, or pump. Any spare parts for the equipment listed above that are on-site are included. All units are on the ground and ready for loadout. Price is in USD. Equipment can be purchased separately.

Plant is taken down and dissasembled ready for loadout. **There is NO SEB INCLUDED IN THIS PLANT** **Make**: Standard Steel **Model**: TM40 **Approx Output**: 5,000lb, 165tph (tph per Previous Owner) Portable with Self Erect Kit 5,000 Lb. Pugmill 60 Cuft Pugmill 125 Hp Pugmill Motor (4) Hot Bins with Bindicators Simplicity Screen Deck Hot Elevator **Portable (7’x 22’) Standard Steel Drye**r * Chain Driven * Two Axles * Model: 722 * SN: 5665 * Dryer Thickness – Good * Gencor AF-40 Burner Set Up to Burn Diesel * Both The Tower and Drum Are on One Load * Portable * Triple Axle **1998 Portable BDM 4 Bin Cold Feed** * Variable Speed * 9’x 12’ Bins (Bdm) * Bins Are Portable with Single Axle * 3hp D.C. Reliance Motors * 30”X 5’ Variable Speed Feeders * 32”X 60’ Collecting Belt W/5’ Fold-Able Stinger * Loading Side Bulkhead **Portable Incline Charging Conveyor to Drum** * 30”X 50’ Truss Conveyor **Portable Baghouse** * Retrofitted In 1998 * 125 Hp Exhaust Fan * (Slat Bottom Removed Double Auger System Installed) * 22” Single Auger to Bucket Elevator Approx. 35,000 Acfm * 75 Hp Rotary Screw Compressor * Bags are in baghouse, soft and pliable **Portable Double Cyclone System With 10” Auger to Hot Elevator** * Single Axle **No A.C. System** * 3” A.C. Plant Pump * All Jacked Pipes Included **No Tanks** **Portable 8’x 40’ Control Trailer** * Controls * Digital Scales W/ Computer Ticket Printing * Above Ground Wiring * Gen III Burner Controls * EZ Batcher Computer Controls * Motor Controls in Control Trailer and Quick Disconnects on The Outside of Trailer * **OWNER NOTES:** * Plant Is Down on The Ground Ready to Move to New Location. * The Plant Is Fully Portable * Erect Kit Is Fully Functional. * Many of The Mc Starters Have Been Upgraded. * This Plant Was Purchased for A Job Moved to Current Location in CA. Never Used for Job. Road Readiness Must Be Checked.

## Cedarapids Batch Tower (Tower & Bucket Elevator Only) ### **Included Components:** **Batch Tower** * Make: Cedarapids * Capacity: 2.5 Ton (5,000) H-50 **Pugmill** * Capacity: 2.5 Ton * Drive Package: 100 HP **Hot Bins** * Quantity: 4 **Asphalt Kettle** **Weigh Hopper** **Screen** * Make: Cedarapids * Type: 3 1/2 Deck Screen (Under-slung centrifugal, spins freely) * Size: 4' x 12' Horizontal **Incline Hot Elevator** * Make: Cedarapids * Type: Single Chain **MC Box** * On side of the tower * Miscellaneous breakers inside **Condition**: The unit is currently erected and appears to be in fair condition.

**Complete Tower (200 TPH)** 5,000 LB (2.5 Ton) Pugmill Complete Tower 4 Hot Bins Hot Elevator with 15 HP Drive Package 5' x 14' Simco Screen Deck, SR# N6133 (20 HP Motor, Belt Not Hooked Up but Shaker Spins Freely) **Dryer** 7' x 28' Dryer Belly Chain Driven, Teeth Are Good Thickness: .546, .316, .206, .391, .504, .495, .498, .509, .512 50 HP Drive Package Slinger Belt for Feed RAP Collar for the Recycle Injection **Burner** Model# AF.60, SR# AF.165 **Dust System** Primary Single Cyclone Secondary Baghouse (6,699 TSQC rated at 40,194 @ 6.1) Single Auger Discharge with 5 HP Drive Package Twin City Fan with 200 HP Motor (Newer Motor) Power Dampener Exhaust Fan Newer Rotary Screw Compressor **Cold Feed System** (4) 10' x 10' Bins 26" x 4' Variable Speed Feeders, 3 HP AC Motors with Drive (2 Bin Vibrators) 24" x 100' Incline Weigh Bridge Conveyor with Drive Package into 5' x 13' Double Deck Screen (Only Using Bottom Deck) 30" x 25' Conveyor with Drive Package No Flow Switches and Tachs Installed on Feeders **Recycle Bin #1** 7' x 13' Bin with 30" x 23' Conveyor with 10 HP Drive Onto 24" x 60' Conveyor with Grizzly **Recycle Bin #2** 6' x 12' Bin with Grizzly 30" x 50' Conveyor with Drive Package into 4' x 8' Single Deck Screen Portable 24" x 100' Lattice Weight Bridge Conveyor with Reject Chute **A.C. System** 1 Skidded Mounted (30,000 GL) Direct Fired A.C. Tank, SR#2338-91 15 HP Unloading Pump, 10 HP Loading Pump **Fuel System** Tank #1: Vertical Fuel Tank, Diesel Pump Package with 3 HP Motor and Strainer Tank #2: Skid Mounted Horizontal Fuel Tank (Loader) with Pump Package **Burner Fuel Preheater** Tank #3: Small Self-Contained Fuel Tank **Control House** Barber Greene Portable Single Axle, 2-Room Control House 280 Degree Control House Wem Computer Batching Controls Gencor Genie Burner Controls EZ Blend Cold Feed Controls MC Controls on Side of Tower Above Ground Wiring

**Make**: Barber Greene **Output:** 6,000lb **Stationary** **BE 60 x 258 6,000 lb. BATCH TOWER** * Deister horizontal screen deck * Extended hot bins **Hot Bucket Elevator** * Chain and Buckets in good condition **DC 65 X 253 (8’x 32’) Dryer** * Shells has some patching * Trunnions, chain, sprockets in good condition * 2001 Genco AF-40 combo burner. * Set on natural gas * Barber Green burner controls **CF-130 L237 Barber Greene Pulse Jet Baghouse** * 41,000acfm * 600 51/4” x 12’ bags in good condition **PN 40 x 227 (4) bin Barber Greene Cold Feed** * 9’ x 13’ variable speed 3hp D.C motors with bin extenders. * (2) with bin vibrators * 24” x 8’ feed belts * 32” collecting belt * 32” x 60’ incline belt from cold feed to dryer * 3 feeders ok, one needs rebuilding **Inferno-Thurm Electric A.C. Tank** * 20,000 gallons * Skid mounted **Stationary Control House** * AB-500 Seltec computer controls * Barber Greene control stations * M.C.C (Located under control house) **Barber Greene Dust Silo** * 500BBL (Square silo) * Binvent (Baghouse) * Pneumatic weigh pod with rotary air lock **Misc. Parts** Zip Code in location is for state capital, please contact ASI directly for more specific location.

H&B Dryer: 6’ x 30’ DRYER SHELL NEEDS REPACMENT (HES BEEN RELINED ON DISCHARGE END) Tires Have Been Wielded Has 2 30hp drive motors Genco Burner (Duel Fuel) Flights have wear. Control House: 360 Degree view Relocatable Has Manual Controls. Has walkway and stairs ColdFeed System: (4) 8’x 12’ Bins 24’’x 6’ Variable Speed Feeders with 5HP A.C Motors With Link- Belt Reducers 30”x 48’’ Collecting Conveyor with 25hp motor 2 Bins Have Vibrator’s 30”x 30’ Incline Cannel Conveyor to Dryer (With ERIEZ Over Head Belt Magnet) H&B Batch Tower: Model S.41.A.0 SN# 1009 2 Ton (4,000LB) Pugmill Dual Shaft with 100 HP Motor on Drive Package Deister Horizonal Screen Deck 4 Hot Bins Bucket Elevator Complete, 15hp Motor On Drive Package Primary Dust Filtration: 2 Dual Cyclones Both Have Rotor Air Lock With 3HP Motors. Has Discharge Auger With 3HP Motor Barber Greene Baghouse (CE-18?): Exhaust Fan with (2) 150hp motor Duel Auger Discharge Has discharge auger with (2) 3hp motor Portable 2 axle no wheels or tires seen Has 43 Rows Pulsers 56,700 CFM @6.1 9,450 Total SQ. Ft Of Cloth With Updated Control Pannel AC Tank: Childers Model R-5M (5,000 Skidded A.C. Tank) Childers Hot Heater (Set Up On Natural Gas) Model SA 150 (1.5MBTU) Unloading Pump PLANT NEEDS NEW DRYER HAS MANUAL CONTROLS, SMALL A.C. TANK AND NO WIRE.

6000 # 3 ton batch, Model R-M #3 775 Deister Screen, BF-2516-D, SN: 2003139 New Screen On Tower Date: 1/2016 8x 30 dryer Ultra II-70 burner Standard Havens 54,000 cfm baghouse, 150 hp Hy-Way HYCGO - 100 hot oil heater Duel Fuel Hot Oil Heater Power Flame Burner 6 cold feed bins( fair) Pugmill Drive New Falk Ultra Max on 7/4/22 New Gate on Pugmill
